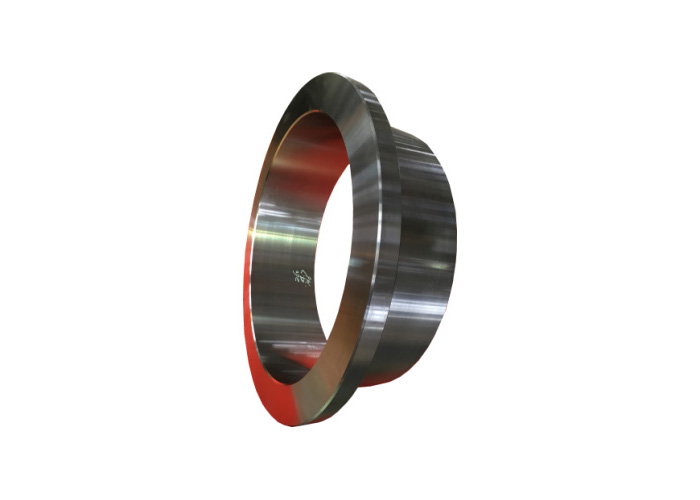

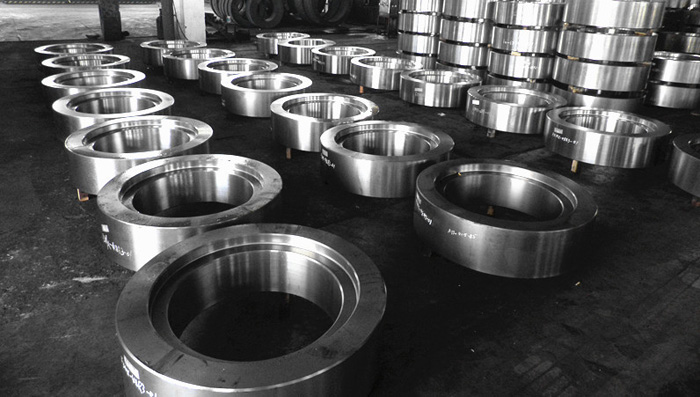

In order to provide high torque transmission and long-term stability in green energy production, Fangyuan manufactures
Forged shrink discs for wind turbines. Our
Shrink disc components are precision-designed to ensure secure shaft-hub connections in multi-MW turbines, even under extreme dynamic loads and temperature fluctuations.
Key Features
Forged Integrity: Forged Shrink Discs provide uniform material density and fatigue resistance for 20+ year service life
Precision Fit: Shrink Disc Components CNC-machined to ±0.05mm tolerances for zero-slip performance
Dynamic Load Capacity: Optimized for cyclic stresses in rotor and gearbox connections
Corrosion Protection: Salt-resistant material for coastal/offshore installations
Technical Specifications
Bore Diameter: 100mm to 2000mm
Torque Transfer: Up to 15 MN·m capacity
Standards Compliance: DNV GL-ST-0376, IEC 61400-6
Operating Temp: -40°C to +120°C
Applications
Main rotor shaft-to-gearbox connections
Yaw/pitch system locking mechanisms
Offshore turbine drivetrain assemblies
Retrofit solutions for legacy turbines
Quality Assurance
100% ultrasonic testing (UT) of forged blanks
Hardness gradient verification
Forged to Lock. Built to Endure.
Trust Fangyuan’s Forged Shrink Discs and precision Shrink Disc Components to secure your wind energy systems.
